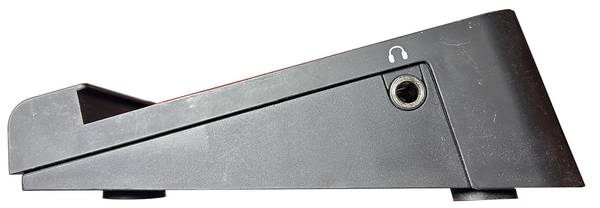

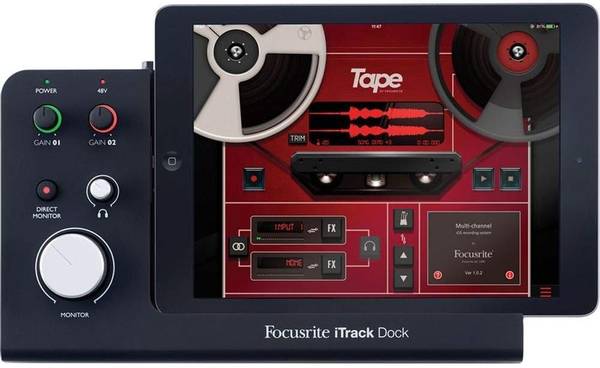

Focusrite iTrack Dock - works with Lightning iPads - $100 (Annapolis)
866 Stonehurst Ct near Stonehurst Dr
QR Code Link to This Post
Fundamentally, the iTrack Dock provides a means of connecting microphones, musical instruments or line level audio signals to your compatible iPad device. The signals at the physical inputs can be routed to your audio recording app; similarly, the app’s monitor or recorded output will appear at the iTrack Dock’s physical outputs.
Audio sources – mics, instruments, etc. - connected to the physical inputs can be recorded in your audio recording app. The app’s outputs are routed to the physical outputs, so you can overdub additional tracks by listening to what you’ve already recorded while playing or singing. The physical outputs can be connected to an amplifier and speakers, powered monitors, headphones, analogue
mixer or any other analogue audio equipment that you wish to use. The iTrack Dock’s Direct Monitor feature lets you hear yourself in real-time while recording – with no delay, or “latency”.
Although all inputs and outputs on the iTrack Dock are routed directly to and from your recording app for recording and playback, you can configure the routing within the app itself in order to meet your needs.
The iTrack Dock uses renowned Focusrite analogue mic pre-amps, with over 105 dB of dynamic range. 48 V phantom power lets you use studio quality condenser microphones. The dedicated instrument input allows direct connection of an electric guitar or bass, including those with high-output pickups.
iTrack Dock is fundamentally a two-channel device, so stereo line level sources such as synths, drum machines and CD players can be connected, whether they have balanced or unbalanced outputs.
iTrack Dock is also equipped with a USB MIDI port, allowing you to connect it to Class Compliant USB MIDI controllers of various kinds. This permits other music apps – such as sample libraries and synthesisers – to be played by a MIDI-equipped keyboard or pad-based controller.
The iTrack Dock is powered by the separate 12 V DC PSU supplied with the unit. While your iPad is docked, it will be both powered and charged from the iTrack Dock, provided the iTrack Dock is switched on.
• Sleek Focusrite industrial design provides the perfect platform to dock, charge and record music with the generation of iPads with Lightning connectors - iPad(4th Gen)/iPad Air/iPad mini/iPad mini with retina display - with official Apple approved "Made for iPad" status
• Best sounding iPad-based workstation, featuring premium Focusrite A-D/D-A conversion with over 105dB dynamic range and the ability to record at up to 24bit, 96kHz sample rates
• Two Focusrite Mic preamps, as featured in the Scarlett range of USB audio interfaces, including 48V Phantom power for use with condenser microphones and unique gain halos to easily set the input gain
• Provides a guitar input with plenty of clean, clear headroom to capture both quiet and loud guitars with stunning clarity
• USB MIDI port for class compliant MIDI controller connectivity (MIDI + power) - perfect for connecting a controller like the Novation Launch key or Launch key Mini; 2-year limited warranty on manufacturing defects
iTrack Dock user guide:
https://fael-downloads-prod.focusrite.com/customer/prod/s3fs-public/focusrite/downloads/20358/itrack-dock-user-guideen.pdf
